SMA-RTY ISP processing
No processing (RAW sensor)
THR-LW Thermal
ActiveHigh Definition Thermal Smart Camera
MIPI CSI-2 Interface USB-UVC Protocol Spectrums & Thermography Onboard FPGA Processing Modular Optical Systems
THR-LW is a shutterless LWIR camera offering VGA resolution (640x480), passively cooled (no TEC, using active software correction of pixel data) with <60mK sensitivity. Its on-board FPGA core handles real-time image enhancement (NUC, BPC, AGC) to deliver a flicker-free 14-bit raw video stream at up to 60 FPS, designed for the most demanding application scenarios.
Spectral Sensitivity
LWIR Thermal
UV
VIS
NIR
SWIR
LWIR
8µm - 14µm

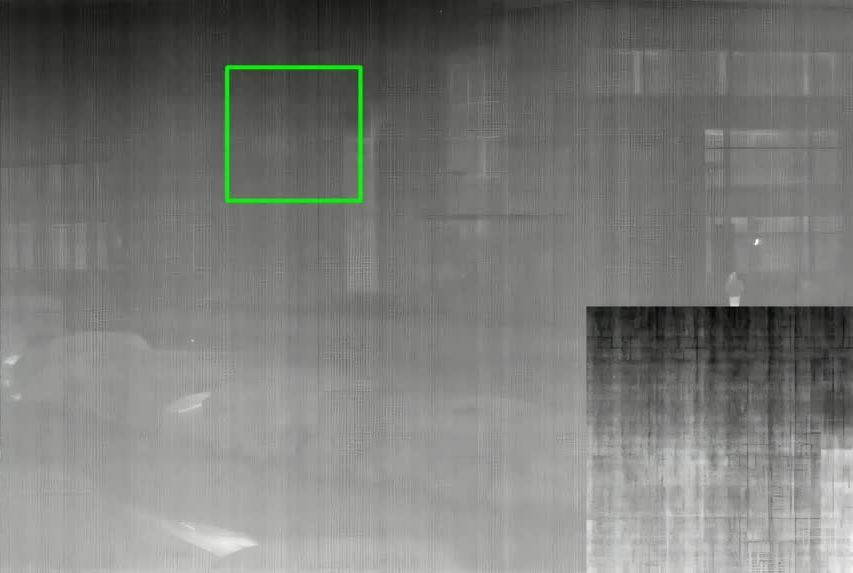

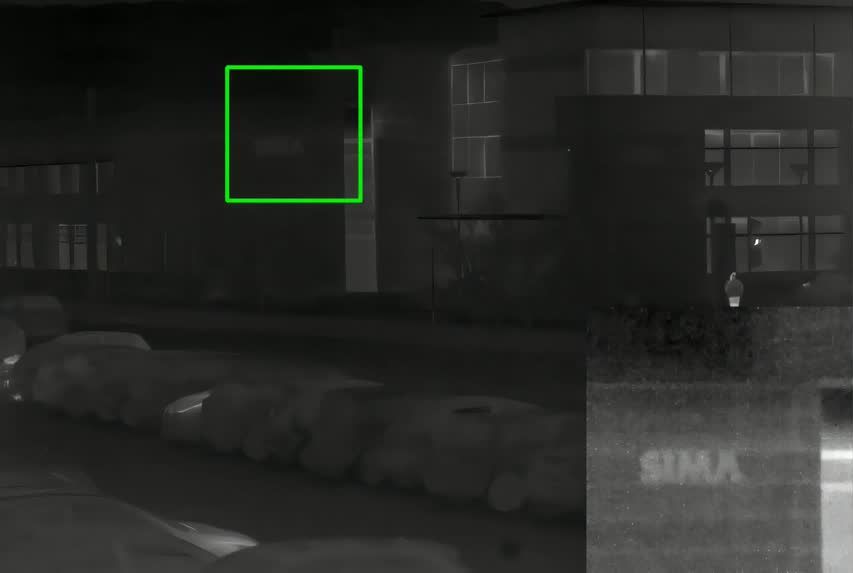

Live Comparison
SMA-RTY ISP processing No processing (RAW sensor) Technical Specifications
| Sensor Type | 12µm Microbolometer (Shutterless) |
| Resolution | 640 x 480 (VGA) |
| Sensitivity | < 60 mK |
| Frame Rate | Up to 60 Hz |
| Interface | USB 3.1 Type-C / MIPI CSI-2 |
| Processing | Real-time FPGA (NUC, BPC, AGC) |
| Dimensions | 55 x 55 x 40 mm |
| Power | 12V DC / 2.5W |
| Op. Temp | -10°C to +55°C |
Gallery & Demos
THR-LW Module

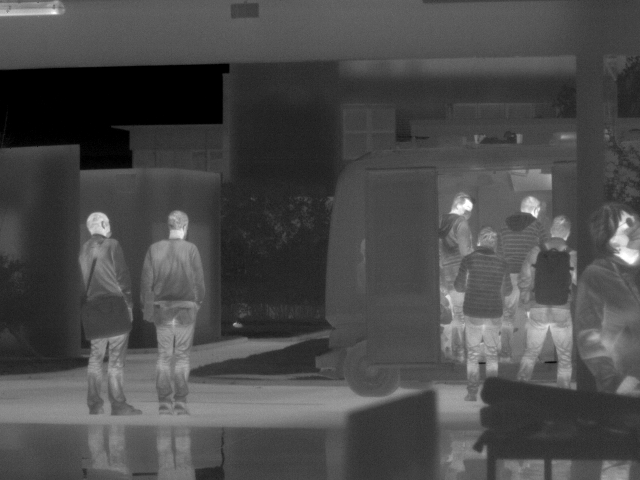

Demo: Human perception

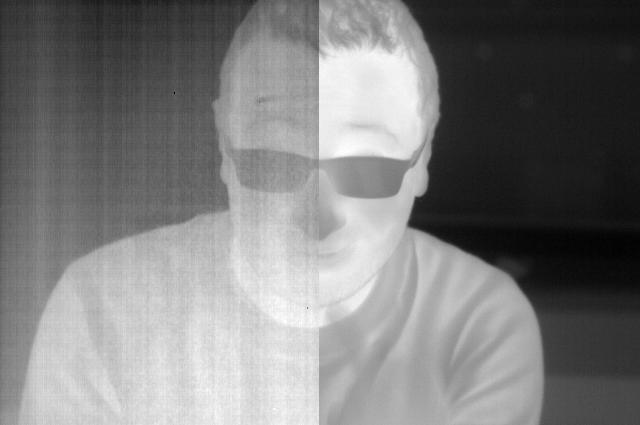

Demo: Raw image vs onboard NUC processed
video
Demo: Maritime Vision

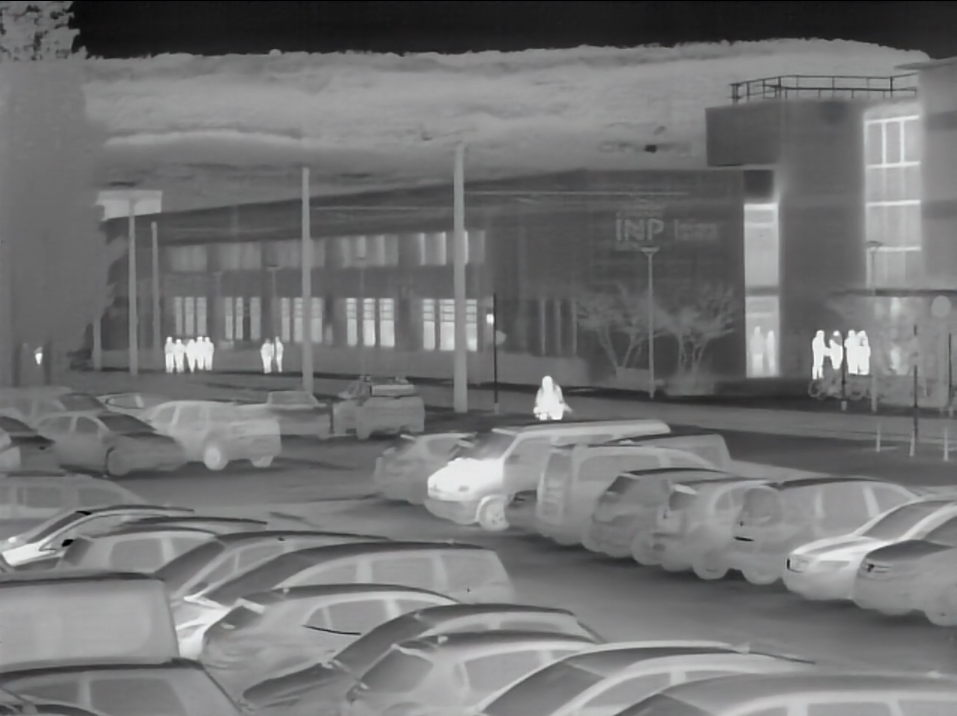

Demo: Smart city perception

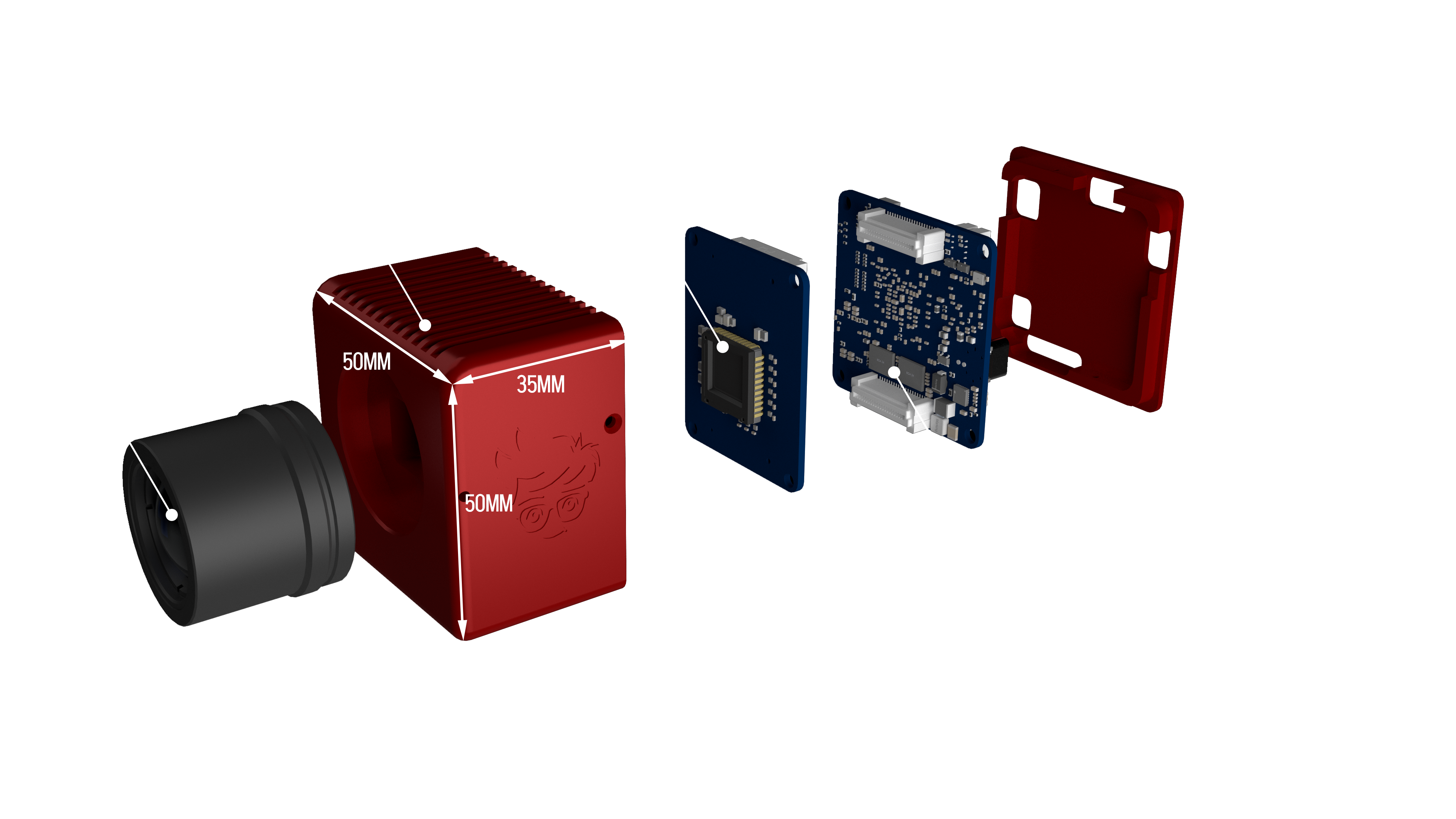

Exploded & Technical View

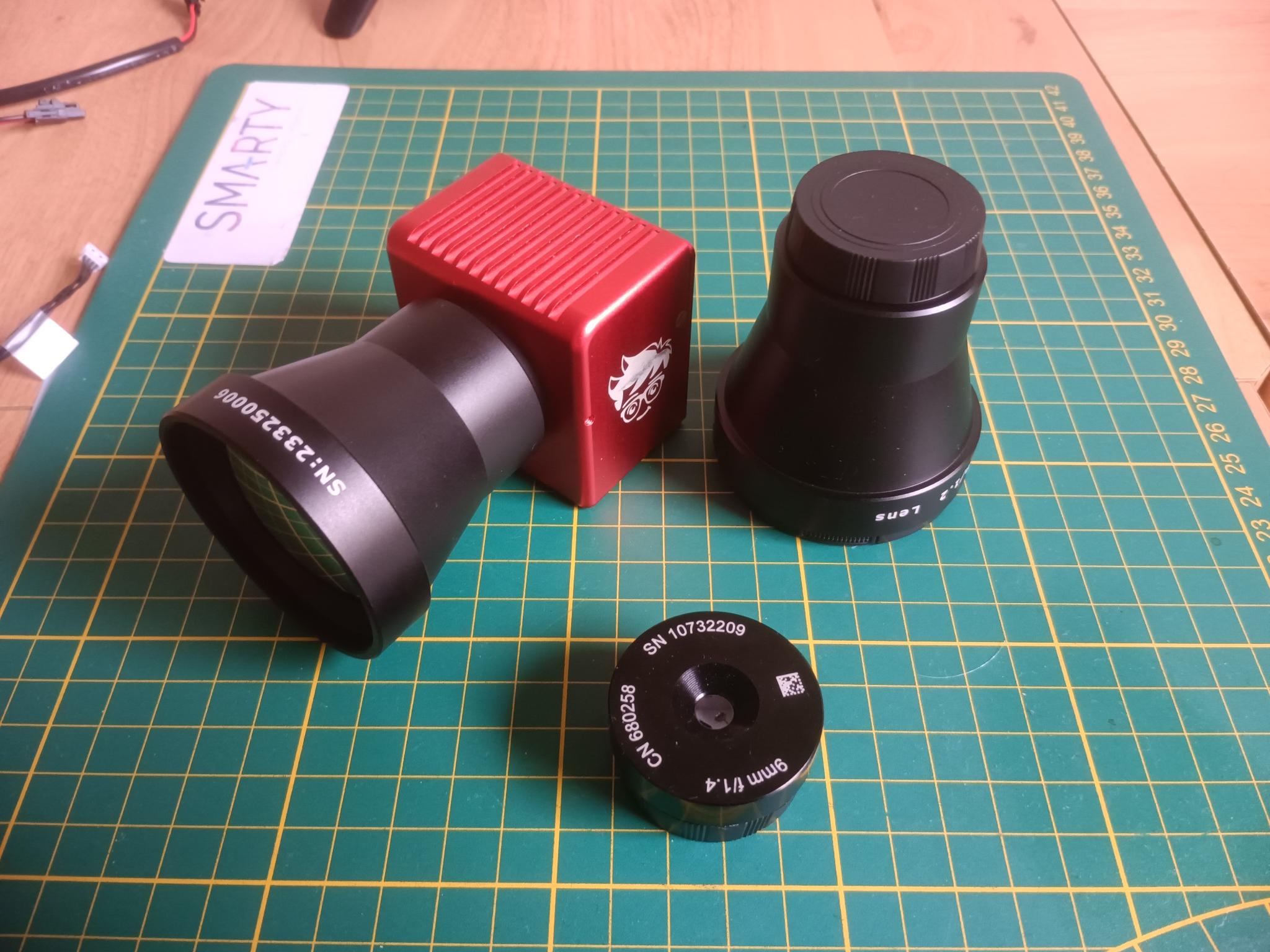

Available in multiple optical formats

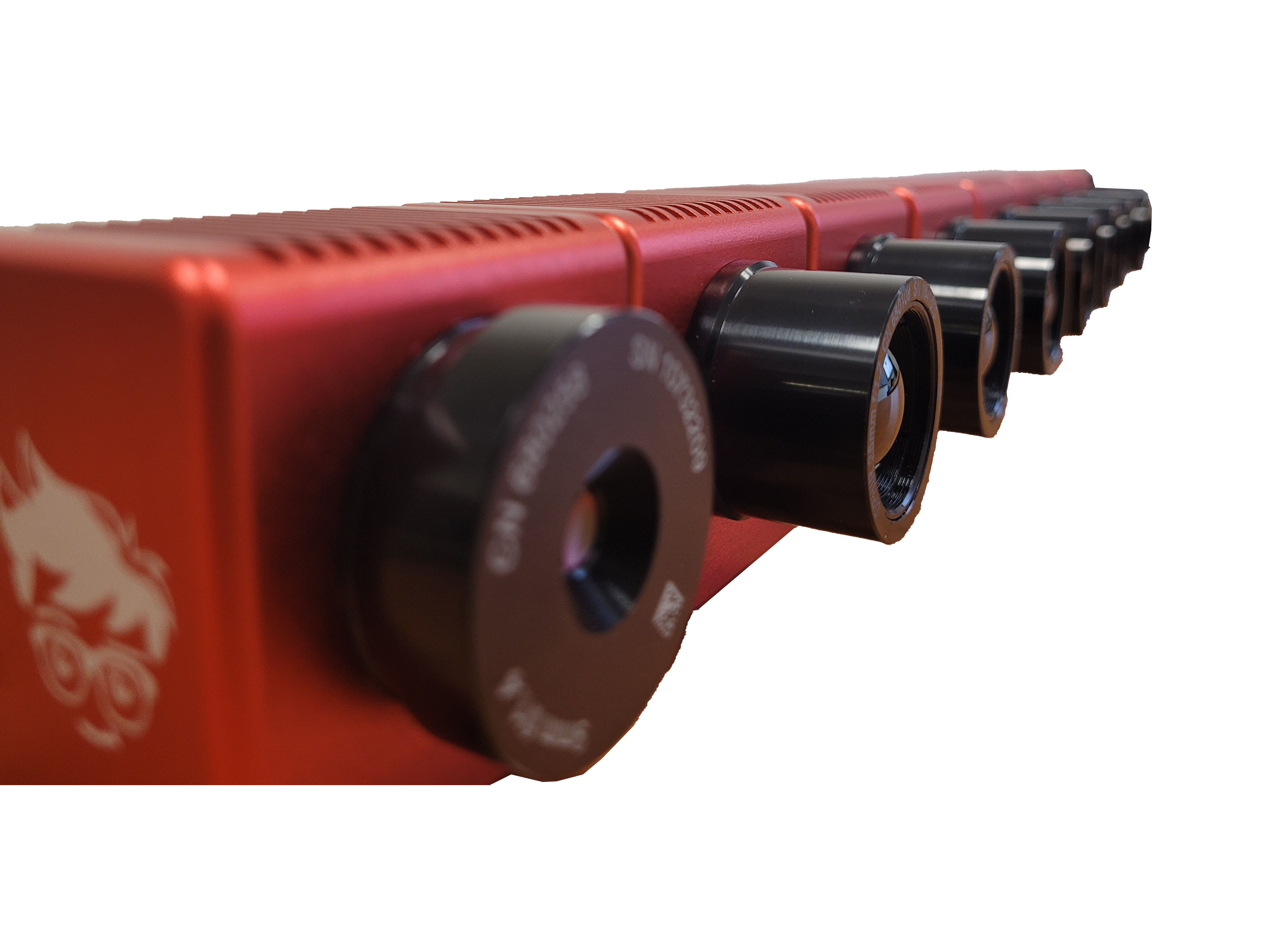

Module Fleet
