FNX-SWIR
Early IntegrationShort-Wave Infrared (SWIR) Vision
The FNX-SWIR camera integrates a cutting-edge InGaAs sensor to reveal the invisible. Capable of seeing through smoke, smog, and certain plastics, it is essential for waste sorting, industrial defect detection, and surveillance in extreme conditions. It shares the same architecture as the THR-LW line, in a slightly larger format.
Spectral Sensitivity
SWIR InGaAs
UV
VIS
NIR
SWIR
LWIR
900nm - 1.7µm
Technical Specifications
| Sensor | InGaAs (Indium Gallium Arsenide) |
| Resolution | 640 x 512 (VGA) |
| Pixel Pitch | 15 µm |
| Spectrum | 0.9 µm - 1.7 µm |
| Dynamic Range | High gain / Low gain modes |
| Interface | MIPI CSI-2 / USB 3.0 |
Gallery & Demos
FNX-SWIR camera

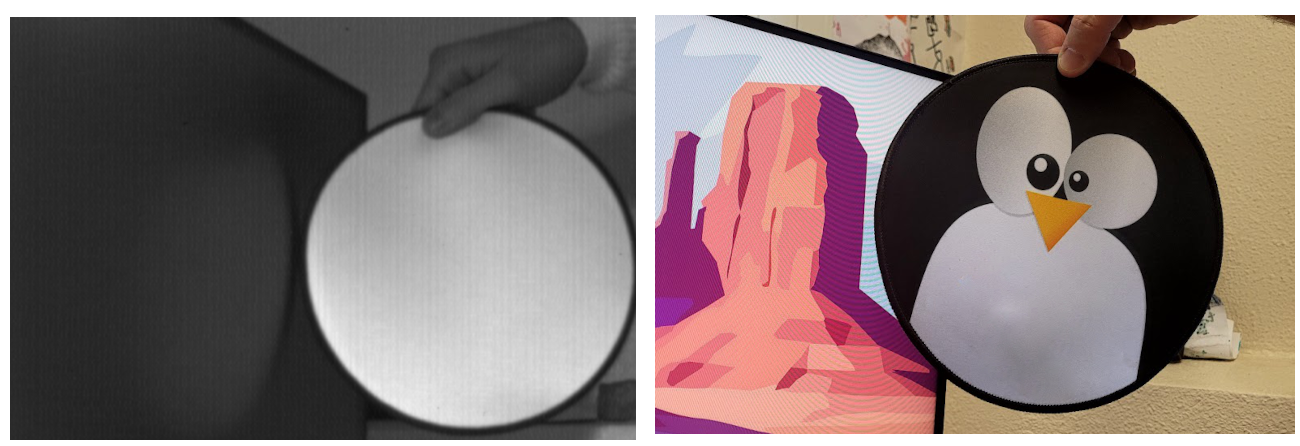

FNX-SWIR detecting material

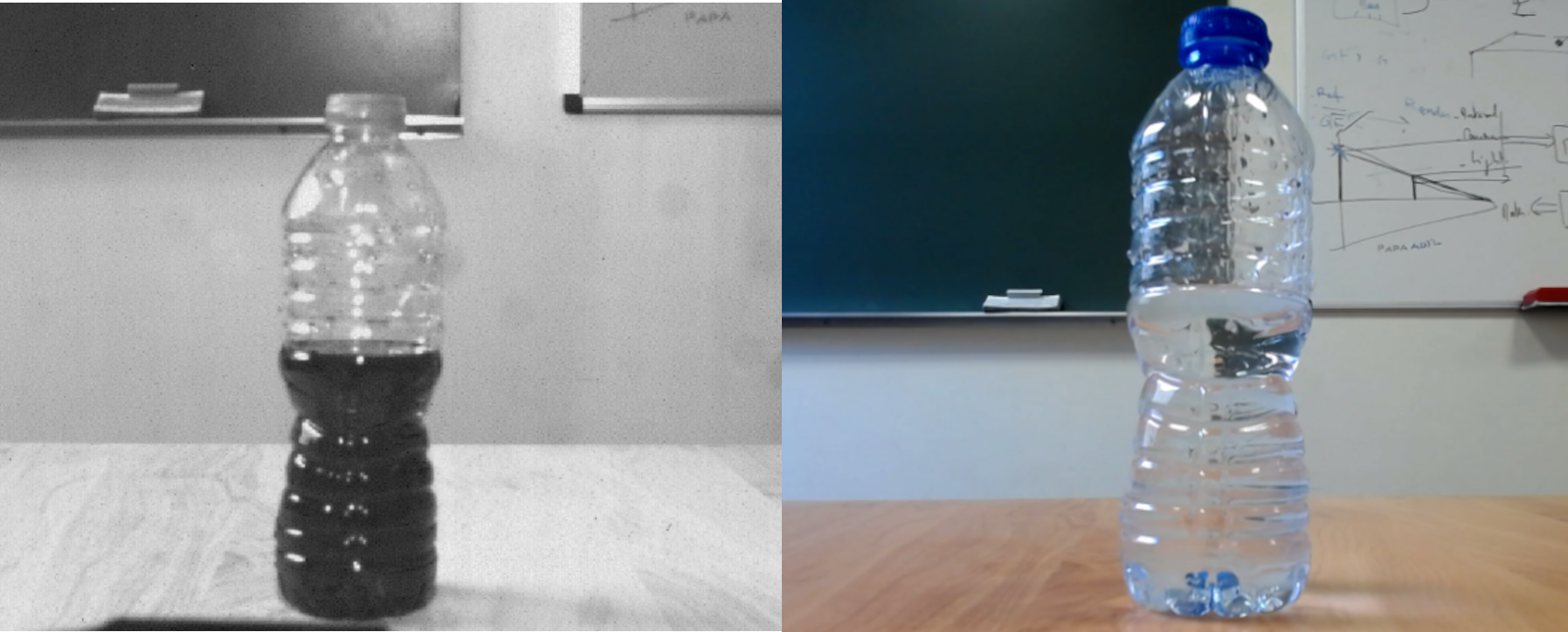

Material comparison

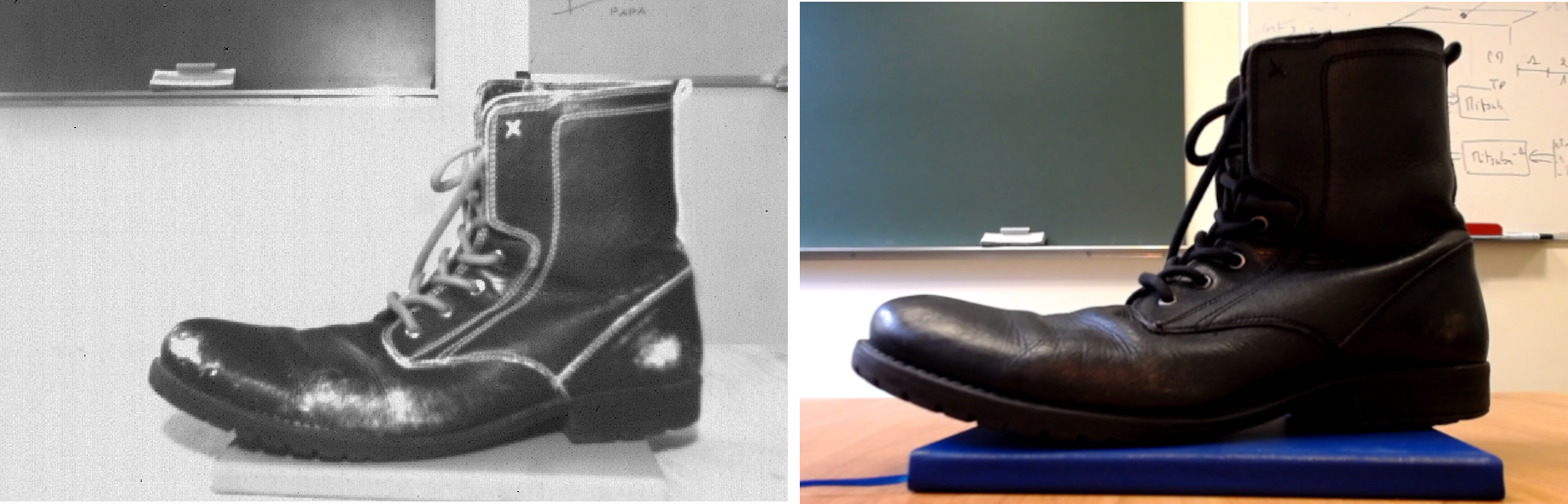

Industrial defect detection
